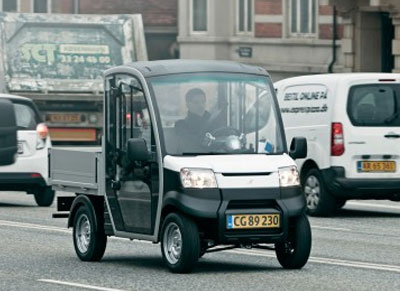

Utility City

Navigating busy city streets and small roads is no issue for the Garia Utility City. With superior handling, quick acceleration, it flows seamlessly in traffic. The Garia works with you, to get you through your workday as smoothly as possible.

Garia Utility City is EU type approved for road use as L7e. US type approval pending.

STANDARD EQUIPMENT

  • Automatic parking brake
  • Steering column mounted direction selector
  • Built-in charger
  • Headlights
  • Cup holder
  • Storage pockets
  • Glove box
  • Single point water filling system
  • Hour meter
  • EU street legal
  • 3-point seat belts
  • Digital speedometer and battery indicator
  • Horn
  • Mirrors package (adjustable side mirrors)
  • Front windshield wiper / washer
  • Rear lights package and turn signals
  • Heated windscreen
  • Bench seat (no heating available)
  • 8 x 6 V battery pack T145
  • All weather tires

TECHNICAL SPECIFICATIONS

  • Engine 48V, high efficient 3-phase AC
  • Output rating 3 kW (4 Hp)
  • Peak power 11 kW (15 Hp)
  • Engine controller, Curtis 350 A
  • Batteries Trojan T145 8x6V
  • Battery capacity (std. batteries), 5H rate 215 Ah
  • Battery capacity (Lithium batteries), 5H rate 100 Ah
  • Chassis, hot dip galvanized steel frame
  • Brakes, disc front, drums rear
  • Tires, 155/70 R13
  • Curb to curb diameter 6,50 meter
  • Vehicle mass, with standard batteries 790 kg.
  • Total load, including passengers (std. Batteries), 560 kg.
  • Total load, including passengers (Lithium batteries), 740 kg.
  • Maximum allowed weight, 1350 kg.
  • Manufacturers limited warranty, 3 years / 3000 hours

PERFORMANCE

  • Top speed 45 km/h
  • Range 40-60 km

GARIA UTILITY, CHASSIS ONLY

  • Length 3225 mm
  • Width 1313 mm
  • Height 1863 mm

GARIA UTILITY WITH PICK UP BED

  • Length 3269 mm
  • Width 1313 mm
  • Height 1863 mm

GARIA UTILITY WITH BOX WITH DOORS

  • Length 3230 mm
  • Width 1340 mm
  • Height 1863 mm
