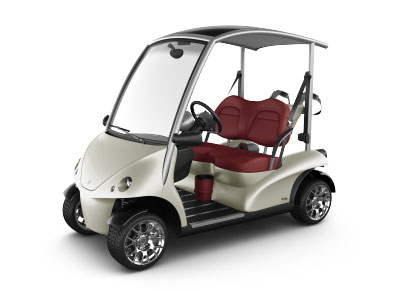

Monaco

A unique combination of performance, versatility and elegance, the Garia Monaco is the ideal luxury vehicle for golf, leisure and street use. Take the Garia Monaco straight from the golf course to your favorite shop or cafe. Street legal worldwide (except for in the United States), the Garia Monaco is ideal for town or city commutes.

Monaco 21

MEASUREMENTS

  • Overall length: 2330 mm/ 92″.
  • Overall width: 1210 mm/ 48″ (excl. mirrors).
  • Overall width: 1540 mm/ 58″ (incl. mirrors).
  • Overall height: 2-seater: 1850 mm/ 73″.
  • Overall height: Roadster: 1206 mm/ 47.5″.
  • Weight 2-seater: 550 kg. / 1184 lbs. – with Garia Lithium batteries: 420 kg. / 898 lbs.
  • Weight Roadster: 500 kg. / 1100 lbs. – with Garia Lithium batteries: 370 kg. / 814 lbs.

POWER SUPPLY/DRIVE

  • Motor: High efficient 3-phase AC motor.
  • Output rating: 3 kW (4 Hp).
  • Peak power: 11 kW (15 Hp).
  • Motor control unit: Curtis 275 amp.
  • Batteries: Trojan 6 x 8V T-875.
  • Charger: Onboard Delta Q charger.

PERFORMANCE

  • Max forward speed: 40 km/h /25 mph. – with Garia Lithium batteries: 58 km/h /36 mph.
  • Max reverse speed: 11 km/h /6 mph.
  • Range (up to): 40-64 km/ 25-40 miles (depending on speed, use, weather etc.).
  • Turning radius: 2600 mm/ 102″ (outer circle).
  • Charge time: approx. 7 hours (for full charge).
  • Hydraulic brakes with discs in the front and drums at the rear.
  • Parking brake: Automatically engaged electromagnetic parking brake.

CHASSIS

  • Frame: Lightweight aluminum frame. 5 years warranty.
  • Rack and pinion steering.
  • Front suspension: Double wishbone suspension made from aluminum with automotive ball joints and coilovers.
  • Rear suspension: Live rear axle mounted with trailing links, Panhard rod and coilovers.
  • Robot-welded aluminum roof structure.

GENERAL

  • Dry weight (with batteries): 550 kg/ 1200 lbs.
  • Tire size: 205-50-10 or 205-30-12.
  • Payload capacity: 350 kg/ 770 lbs.
  • Seating capacity: 2 persons.
  • Weight distribution: 40/60 (front/rear).

WARRANTY

  • Standard 3 years limited vehicle warranty.


 GasolineElectric
Engine404 cc Subaru, 4-cycle, Overhead Cam with Electronic Fuel InjectionN/A
Horsepower14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J19403.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW)
BatteryOne (1) 12-voltSix (6) 8-volt
ChargerN/AE.R.I.C. automatic, 48-volt; UL and CSA listed
Speed Range19 mph (30 kph)19 mph (30 kph)
SteeringSportDrive™ — Self-compensating double reduction helical rack & pinionSportDrive™ — Self-compensating double reduction helical rack & pinion
Front SuspensionIndependent wide track Double A-arm with Hydraulic ShocksIndependent wide track Double A-arm with Hydraulic Shocks
Rear SuspensionPatent pending w/ Track Bar and Automotive Grade Jounce BumpersPatent pending w/ Track Bar and Automotive Grade Jounce Bumpers
BrakesSelf-adjusting, rear wheel mechanical drumSelf-adjusting, rear wheel mechanical drum
Park BrakeFoot actuated, 3-positionFoot actuated, 3-position
Body and FinishFront, Painted TPO; Rear, Painted SurlynFront, Painted TPO; Rear, Painted Surlyn
Tires22 x 10 – 10 Tubeless22 x 10 – 10 Tubeless
LxWxH114 x 49 1/2 x 80 1/2114 x 49 1/2 x 80 1/2
Wheelbase67 1/2 inches/Metric67 1/2 inches/Metric
Ground Clearance6 3/8 inches/Metric6 3/8 inches/Metric
TreadFront/Rear: 40 3/4/39 1/2/MetricFront/Rear: 40 3/4/39 1/2/Metric
Total Vehicle Weight875 lb/Metric1125 lb/Metric
Frame TypeAlumiCore™ — Ladder-style aluminum box beamAlumiCore™ — Ladder-style aluminum box beam
Fuel Tank Capacity6.0 gal (22.7 L)N/A
