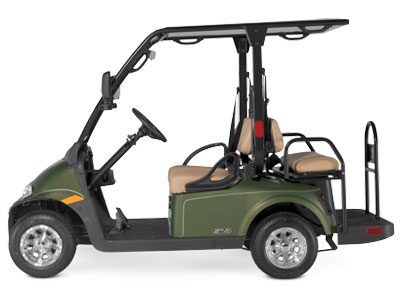

2FIVE 4 Passenger

Pile in and head out. It’s how the 4-passenger 2Five™ does family travel in master-planned and gated communities. Fully electric and featuring 3-point seat belts, a 12V adapter for your phone or mp3 player and plenty of storage, the 2Five makes getting from school to practice and back home more efficient and more fun.

Dash-Mounted 12V Accessory Outlet
Dash-Mounted Speedometer, Odometer & State of Charge Meter
Three-point Seat Belts
Automatic Parking Brake
Passenger Side Locking Glove Box
Turn Signals & Four-way Flashers
Headlights & Taillights
Brake Lights Including Center High Mount Light
Rear View Mirror and Driver/Passenger Side Mirrors
Automotive Safety Glass Windshield (AS1)
White OPS (Operator Protective Structure) Rated Canopy
Floor Board-Mounted Horn
DOT Street Legal 205-50-10 Radial
Deep cup holders
Comfortable, contoured seats

Two-speed Windshield Wiper Kit
Trunk Kit (Keyed to Match Glove Boxes)
Battery Filling System with Nozzle
Amber Strobe Light
Lighted License Plate Holder
Heater/Defroster
Weather Enclosure
Stereo Sound System with Speakers, Amplifier and MP3 Player Connectivity
Sweater Basket/Golf Bag Rack
USB Port

Body & Chassis
Frame	Welded steel w/ Powder-Coat
Body & Finish	Injection-molded TPO and automotive-style paint
Available Body Colors	Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Patriot Blue, Platinum, Sunburst Orange

Dimensions
Overall Length	107.1 in (272 cm)
Overall Width	47.3 in (120 cm)
Overall Height	71.2 in (181 cm)
Overall Height (with strobe)	75.2 in (191 cm)
Wheel Base	65.9 in (167 cm)
Front Wheel Track	36.7 in (93 cm)
Rear Wheel Track	39.7 in (101 cm)
Ground Clearance (at differential)	4.5 in (11 cm)

Power
Power Source	48-volt DC
Motor Type	48-volt AC
Horsepower (kW)	4.4 hp (3.3 kW) continuous
Electric System	48-volt
Batteries (qty/type)	Six, 8-volt deep-cycle
Battery Charger	On-board 48 VDC
Key or Pedal Start	Pedal start
Speed Controller	235-amp AC Controller
Drivetrain	Motor shaft direct drive
Transaxle	Helical gears
Gear Selection	Dash-mounted Forward-Neutral-Reverse
Speed Selection	Dash-mounted High-Low switch
Rear Axle Ratio	14.76:1 (forward)
DC-DC Converter	30-amp integrated into on-board charger

Performance
Seating Capacity	4-person
Weight without batteries	872 lb (396 kg)
Curb Weight	1200 lb (544 kg)
Vehicle Load Capacity	800 lb (363 kg)
Outside Clearance Circle	19.7 ft (6.0 m)
Ground Speed	14.0 – 25.0 mph (22.5 – 40.2 kph)
Reverse Speed	8.0 mph (12.9 kph)
Gross Axle Weight Rating (Forward)	575 lb (261 kg)
Gross Axle Weight Rating (Rear)	2000 lb (907 kg)

Steering & Suspension
Steering	Double ended rack & pinion
Front Suspension	Independent A-arm with coil over shock
Rear Suspension	Mono-leaf springs with hydraulic shocks
Service Brake	Four-wheel hydraulic disc with full-time regenerative braking
Parking Brake	Spring applied electro-magnetic
Tires	DOT Street Legal 205-50-10 Radial
