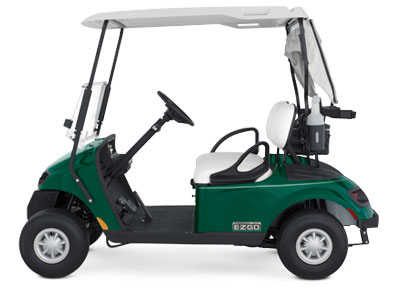

Freedom TXT
Care for a game of tennis? How about a joy ride around the neighborhood? Leave your worries behind and get the most out of every moment with the E-Z-GO Freedom TXT. Choose from best-in-class 48V DC drivetrain or 13.5-hp gas. Either way, ample storage, taller seatbacks, and modern headlights mean you’ll enjoy every second of the ride.
- 18-in turf tires
- Headlights & taillights
- Brake lights
- Horn
- Integrated cup, ball & tee holders
- Sweater basket
- Fuel gauge (gas only)
- State of charge meter (electric only)
- DC/DC converter (electric only)
- 48-volt battery charger (electric only)
- Storage compartment
- Front bumper
| BODY & CHASSIS | |
|---|---|
| Frame | Welded Steel with Powder-Coat Protection |
| Body & Finish | Injection Molded TPO |
| Available Body Colors | Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Orange, Metallic Charcoal, Patriot Blue, Sunburst Orange (custom colors also available) |
| DIMENSIONS | |
|---|---|
| Overall Length | 93.0 in (236 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height (no canopy) | 47.0 in (119 cm) (top of steering wheel) |
| Overall Height (with canopy) | 68.5 in (174 cm) (top of sun canopy) |
| Wheel Base | 66.5 in (169 cm) |
| Front Wheel Track | 34.5 in (88 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance (at differential) | 4.0 in (10 cm) |
| POWER | |
|---|---|
| Power Source | 48-volt DC |
| Motor Type | Shunt Wound |
| Electric System | 48-volt |
| Batteries (qty/type) | Six, 8-volt deep cycle |
| Key or Pedal Start | Pedal |
| Battery Charger | 48 V PowerWise QE, 120 VAC, UL and CSA |
| Speed Controller | 250-amp solid-state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Body mounted forward-neutral-reverse |
| Rear Axle Ratio | 12.44:1 |
| Programmable Golf Modes | Coastal, Mild Hill, Steep Hill |
| PERFORMANCE | |
|---|---|
| Seating Capacity | 2-person |
| Weight without Batteries | 606 lb (275 kg) |
| Curb Weight | 972 lb (431 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19.0 ft (5.8 m) |
| Ground Speed (level ground) | 14.5-19.5 mph (23.3 kph +/- 31.4 kph) |
| Towing Capacity | 3 E-Z-GO golf cars with approved permanent tow bar |
| STEERING & SUSPENSION | |
|---|---|
| Steering | Self-compensating rack and pinion |
| Suspension | Leaf springs with hydraulic shock absorbers |
| Service Brake | Rear wheel mechanical self-adjusting drum |
| Parking Brake | Self-compensating, single point engagement |
| Tires | Hole-in-One 18 x 8.50-8 (4-ply rated) |
- USB outlet
- Fold-down windshield
- Sun canopy
- Bag cover kit
- Weather enclosure
- Turn signals
- Wheel covers (silver spoke & gold spoke)
- Cooler
- Message holder
- Side basket
- Permanent & temporary tow bars
- Rearview mirror
- Differential & fender scuff guard
- Heavy-duty rear suspension
- CE kit
- High altitude jetting (gas only)
- Heavy-duty clutch/belts (gas only)
- Heavy-duty battery option (electric only)
- Battery watering system (electric only)
- TruCourse™ Technology
