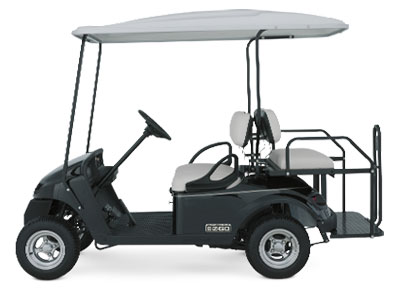

Freedom TXT 2+2
Conquer the neighborhood and experience family cruising in the Freedom TXT 2+2. Enjoy the smooth ride, seating for four, and the abundant storage necessary for concrete adventure.
- Front and Rear Transfer Bumpers
- Headlights
- Horn
- Taillights
- Ergonomically Designed Console
- Multiple Cup Holders
- State of Charge Meter (Electric Only)
- Fuel Meter (Gas Only)
| BODY & CHASSIS | |
|---|---|
| Frame | Welded steel with powder-coat protection |
| Body & Finish | Injection Molded TPO |
| Available Body Colors | Almond, Black, Bright White, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Orange, Patriot Blue, Platinum, Sunburst Orange |
| DIMENSIONS | |
|---|---|
| Overall Length | 106.0 in (2269 cm) |
| Overall Width | 47.0 in (119 cm) |
| Overall Height (no canopy) |
46.5 in (118 cm) (top of steering wheel) |
| Overall Height (with canopy) |
77.0 in (196 cm) (top of sun canopy) |
| Wheel Base | 66.0 in (168 cm) |
| Front Wheel Track | 34.0 in (86 cm) |
| Rear Wheel Track | 38.5 in (98 cm) |
| Ground Clearance (at differential) |
4.5 in (11 cm) |
| POWER | |
|---|---|
| Power Source | 48-volt DC |
| Motor Type | Shunt wound |
| Electric System | 48-volt |
| Batteries (quantity/type) | Six, 8-volt deep cycle |
| Key or Pedal Start | Pedal |
| Battery Charger | 48 VDC 120 VAC, UL & CSA |
| Speed Controller | 250 amp solid state controller |
| Drive Train | Motor shaft direct drive |
| Transaxle | Differential with helical gears |
| Gear Selection | Body mounted forward-neutral-reverse |
| Rear Axle Ratio | 12.44:1 |
| Programmable Golf Modes | Coastal, mild hill, steep hill |
| PERFORMANCE | |
|---|---|
| Seating Capacity | 4-person |
| Dry Weight (without batteries) |
658 lb (298 kg) |
| Curb Weight | 1036 lb (470 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 19 ft (5.8 m) |
| Ground Speed (level ground) |
10.2-14.8 mph (16.4 kph ± 23.8 kph) |
| STEERING & SUSPENSION | |
|---|---|
| Steering | Self-compensating rack and pinion |
| Suspension | Leaf springs with hydraulic shock absorbers |
| Service Brake | Rear wheel mechanical self-adjusting drum |
| Parking Brake | Self-compensating, single point engagement |
| Tires | 18 x 8.50-8 (4-ply rated) |
- Oyster Seats
- Wheel Covers
- Message Holder
- Hour Meter (Gas Only)
- Battery Fill System
- Rearview Mirror
- Sun Canopy
- Fold-down Windshield
- Turn Signal
- Heavy-Duty Batteries (Electric Only)
- CE Kit (Electric Only)
