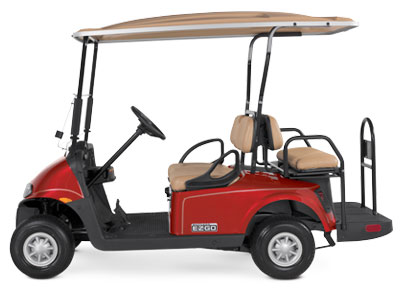

Freedom RXV 2+2

This is your day, and the E-Z-GO Freedom RXV 2+2 can help you get the most from it. With all the premium features and enhanced comfort from the Freedom RXV, the Freedom RXV 2+2 adds room for the whole gang. So grab the kids and go wherever the day takes you!

freedom-rxv-22
  • 18-in turf tires
  • Headlights, taillights & brake lights
  • Horn
  • Integrated cup, ball & tee holders
  • Energy transfer bumpers
  • Fuel gauge (gas only)
  • State of charge meter (electric only)
  • DC/DC converter (electric only)
  • 48-volt battery charger (electric only)
  • Fixed rear seat
  • Deep cup holders
  • Comfortable, contoured seats
BODY & CHASSIS
FrameWelded steel w/ Powder-Coat
Body & FinishInjection Molded TPO
Available Body ColorsAlmond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Patriot Blue, Platinum, Sunburst Orange, White
DIMENSIONS
Overall Length105.5 in (268 cm)
Overall Width47.0 in (119 cm)
Overall Height
(no canopy)
47.0 in (119 cm) (top of steering wheel)
Overall Height
(with canopy)
75.0 in (191 cm)
Wheel Base66.0 in (168 cm)
Front Wheel Track34.5 in (88 cm)
Rear Wheel Track38.5 in (98  cm)
Ground Clearance
(at differential)
4.0 in (10 cm)
POWER
Power Source48-volt DC
Motor Type48-volt AC
Electric System48-volt
Batteries (quantity/type)Four, 12-volt deep cycle
Battery Charger48 V DC PowerWise high frequency, UL and CSA
Speed Controller235 amp AC controller
Drive TrainMotor shaft direct drive
TransaxleLimited slip differential
Gear SelectionKey switch
Rear Axle Ratio16:99:1
PERFORMANCE
Seating Capacity4-person
Dry Weight
(without batteries)
674 lb (306  kg)
Curb Weight1002 lb (455 kg)
Vehicle Load Capacity720 lb (325 kg)
Outside Clearance Circle19.2 ft (5.8 m)
Ground Speed
(level ground)
8-15 mph (12.8-24.1 kph)
STEERING & SUSPENSION
SteeringDouble-ended rack and pinion
Front SuspensionIndependent A-arm coilover shock
Rear SuspensionMono-leaf springs with hydraulic shocks
Service BrakeElectric motor
Parking BrakeAutomatic electro-magnetic
Front TiresTurf 18 x 8.50-8 (4-ply rated)
Rear TiresTurf 18 x 8.50-8 (4-ply rated)
  • Fold-down windshield
  • Sun canopy
  • Weather enclosure
  • Turn signals
  • Wheel covers (silver spoke & gold spoke)
  • Message holder
  • Locking glove box
  • Rearview mirror
  • Hour meter
  • CE kit
  • Battery watering system (electric only)
  • 2 golf bag attachment
  • Convertible rear seat
  • High altitude jetting (gas only)
  • Heavy-duty battery option (electric only)
  • 12V outlet
  • USB port
