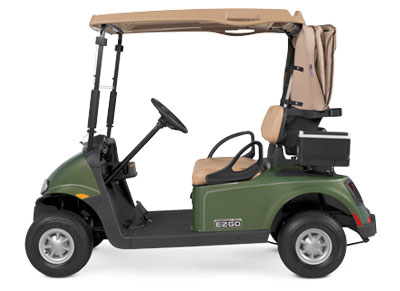

Freedom RXV

From rides around the neighborhood to quick errand runs, the E-Z-GO Freedom RXV is designed to help you enhance your lifestyle. Choose between the electric model’s patented AC drive and the low-emission, 13.5-hp gas-powered model. No matter where the day takes you, let the Freedom RXV get you there.

18-in turf tires
Headlights, taillights & brake lights
Horn
Integrated cup, ball & tee holders
Sweater basket
Energy transfer bumpers
Fuel gauge (gas only)
State of charge meter (electric only)
DC/DC converter (electric only)
48-volt battery charger (electric only)
Deep cup holders
Comfortable, contoured seats
Oversized bag well

BODY & CHASSIS
Frame	Welded steel w/ Powder-Coat
Body & Finish	Injection Molded TPO
Available Body Colors	Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Patriot Blue, Platinum, Sunburst Orange, White

DIMENSIONS
Overall Length	93.5 in (238 cm)
Overall Width	47.0 in (119 cm)
Overall Height (no canopy)	46.5 in (118 cm) (top of steering wheel)
Overall Height (with canopy)	69.5 in (177 cm) (top of sun canopy)
Wheel Base	66.0 in (168 cm)
Front Wheel Track	34.5 in (88 cm)
Rear Wheel Track	38.5 in (98 cm)
Ground Clearance (at differential)	4.0 in (10 cm)

POWER
Power Source	48-volt DC
Motor Type	48-volt AC
Electric System	48-volt
Batteries (qty/type)	Four, 12-volt deep cycle
Battery Charger	48 V PowerWise QE, 120 VAC, UL and CSA
Speed Controller	235-amp solid-state controller
Drive Train	Motor shaft direct drive
Transaxle	Limited Slip Differential
Gear Selection	Dash-mounted forward-neutral-reverse
Rear Axle Ratio	16.99:1

PERFORMANCE
Seating Capacity	2-person
Weight Without Batteries	642 lb (291 kg)
Curb Weight	970 lb (440 kg)
Vehicle Load Capacity	800 lb (360 kg)
Outside Clearance Circle	19.2 ft (5.8 m)
Ground Speed (level ground)	17.5 mph -19.5 mph (28 kph – 31 kph)
Towing Capacity	3 E-Z-GO golf cars with approved permanent tow bar

STEERING & SUSPENSION
Steering	Double-ended rack and pinion
Front Suspension	Independent A-arm coil over shock
Rear Suspension	Mono-Leaf springs with hydraulic shock absorbers
Service Brake	Induction Motor
Parking Brake	Automatic Electro-Magnetic
Front Tires	Hole-in-One 18 x 8.50-8 (4-ply rated)
Rear Tires	Hole-in-One 18 x 8.50-8 (4-ply rated)

Fold-down windshield
Sun canopy
Weather enclosure
Turn signals
Wheel covers (silver spoke & gold spoke)
Sand bottle
Sand bucket
Sand rake
Club & ball washer
Cooler
Message holder
SoftSwipe® cleat cleaner
Side basket
Glovebox doors
Rearview mirror
Hour meter
CE kit
Battery watering system (electric only)
12V outlet
USB port
