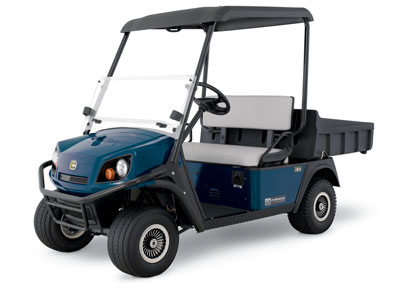

Hauler 800
Fully loaded and ready to work.
The name says it all. This rugged work vehicle earns its keep with get-it-done versatility…ideal for moving equipment and materials around any plant or jobsite. Fill it up and get after it with the Cushman Hauler®.
Gas or electric drivetrain models
800-lb capacities
Optional limited slip differential
Headlights
Safely navigate in any lighting condition
Roto-Molded Polyethylene Cargo Bed
Durable construction for even the toughest jobs
Optional Rear Hitch Receiver
Elevates towing ability and functionality
Bench Seating
Comfortable, spacious seating for multiple passengers
Optional Locking Glove Box
Safe and secure onboard storage
Front Bumper and Brush Guard
Added vehicle protection and durability
| Dimensions | |
| Overall Length | 107 in (272 cm) |
| Overall Width | 49.5 in (128 cm) |
| Overall Height (No Canopy) | 46.5 in (118cm) (Top of steering wheel) |
| Overall Height (With Canopy) | 70.0 in (178 cm) |
| Wheel Base | 65.5 in (166 cm) |
| Front Wheel Track | 37.0 in (94 cm) |
| Rear Wheel Track | 38.0 in (97 cm) |
| Ground Clearance @ Differential | 4.3 in (11 cm) |
| Cargo Box Width (Inside) | 44.5 in (113 cm) |
| Cargo Box Length (Inside) | 30.5 in (77 cm) |
| Cargo Box Depth (Inside) | 7.5 in (19 cm) |
| Cargo Box Capacity | 5.9 cu ft (0.17 m³) |
| Cargo Box Material | Roto-molded polyethylene |
| Vehicle Power | |
| Motor Type | 48 VDC, Shunt Wound |
| Horsepower (kW) | 3.0 HP (2.2kW) Continuous |
| Electrical System | 48 Volt |
| Batteries (Qty, Type) | Six, 8 Volt Deep Cycle |
| Key or Pedal Start | Pedal Start |
| Battery Charger | 48 Volt DC, 120 VAC input, UL/CSA |
| Speed Controller | 250 Amp Solid State Controller |
| Drivetrain | Motor Shaft Direct Drive |
| Transaxle and Ratio | Differential with helical gears, 12.44:1 Ratio |
| Gear Selection | Forward-Neutral-Reverse Dash Mounted Switch |
| Performance | |
| Seating Capacity | 2 Persons |
| Dry Weight | 747 lb (399 kg) (Without Batteries) |
| Curb Weight | 1,112 lb (504 kg) |
| Bed Load Capacity | 500 lb (230 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Outside Clearance Circle | 18.9 ft (5.8 m) |
| Intersecting Aisle Clearance | N/A |
| Speed (Level Ground) | 10.2 - 14.8 mph (16.4-23.8 kph) |
| Towing Capacity | 475 lb (215 kg) max load |
| STEERING AND SUSPENSION | |
| Steering | Self-Compensating Rack and Pinion |
| Front Suspension | Leaf Springs with Hydraulic Shock Absorbers |
| Rear Suspension | Leaf Springs with Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single Point Engagement |
| Front Tires | Links 18 x 8.50 - 8 (4 Ply Rated) |
| Rear Tires | Turf Saver 18 x 8.50 - 8 (Load Range B) |
| BODY & CHASSIS | |
| Frame | Welded Steel with DuraShield powder coat |
| Front Body and Finish | Injection-Molded TPO, Painted |
| Rear Body and Finish | Steel, Polyester Powder Coat |
| Standard Color | Forest Green |
