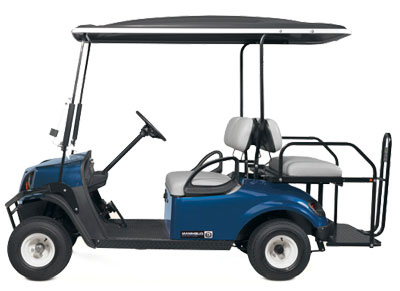

Shuttle 2+2

Transport with comfort and ease.

The Cushman Shuttle 2+2 is the ideal choice for transporting personnel and visitors around a plant, resort, or the jobsite. Comfortably seating up to four passengers with generous bench seating, the rear seat will also convert to a cargo space. The Shuttle 2+2 is offered in your choice of a fuel-efficient 13.5-hp Kawasaki gas-powered engine, or 48-volt electric power drivetrain.

Convertible Rear Seat to Cargo Area

Enhances versatility and functionality

Headlights (Standard)

Safely navigate in any lighting condition

Optional Windshield and Canopy

Drive comfortably without exposure to elements

Cupholders

Enhanced convenience and functionality

Brush Guard

Added vehicle protection and durability

Optional Brake Lights

For enhanced safety and visibility
Dimensions
Overall Length 108.5 in (276 cm)
Overall Width 48.5 in (123 cm)
Overall Height (No Canopy) 46.5 in (118 cm) (Top of steering wheel)
Overall Height (With Canopy) 77.0 in (196cm) (Top of Sun Canopy)
Wheel Base 65.5 in (166 cm)
Front Wheel Track 38.0 in (97 cm)
Rear Wheel Track 38.5 in (98 cm)
Ground Clearance @ Differential 4.5 in (11 cm)
Load Deck Width 40.0 in (102 cm)
Load Deck Length 32.0 in (81 cm)
Vehicle Power
Power Source 48-Volt DC
Motor Type Shunt Wound
Horsepower (kW) 2.5 hp (1.9 kW)
Intermittent Horsepower (kW) 3.0 HP (2.2kW) Continuous
Electrical System 48-Volt
Batteries Six, 8V Deep Cycle
Key or Pedal Start Pedal Start
Speed Controller 250 Amp Solid State Controller
Drivetrain Motor Shaft Direct Drive
Transaxle Differential with Helical Gears
Gear Selection Dash-Mounted Forward-Neutral-Reverse
Rear Axle Ratio 12.44:1
Performance
Seating Capacity 4 Person
Dry Weight 658 lb (298kg)
Curb Weight 1036 lb (470kg)
Deck Load Capacity 250 lb (113 kg)
Vehicle Load Capacity 800 lb (363 kg)
Outside Clearance Circle 19 ft (5.8 m)
Speed 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph)
Steering and Suspension
Steering Self-Compensating Rack and Pinion
Front/Rear Suspension Leaf Springs with Hydraulic Shock Absorbers
Service Brake Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Self-Compensating Single Point Engagement
Front/Rear Tires 18 x 8.50 - 8 (4-Ply Rated)
Body & Chassis
Frame Welded steel with DuraShield™ powder coat
Body & Finish Injection molded TPO
Standard Color Patriot Blue
