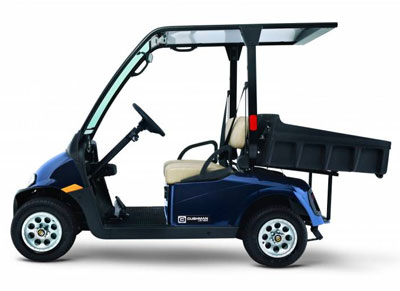

Hauler LSV

Because the work doesn’t always stop at the curb.

When the work takes you on the road, Cushman street-legal vehicles are ready to help you get the job done. With a quiet, zero-emissions 48-volt AC electric drivetrain, a top speed of 25 mph, and features such as an automotive safety-glass windshield, three-point seat belts, four-wheel hydraulic disc brakes and DOT-rated radial tires, the Cushman LSV 800 is street-legal on most public roads with posted speed limits of 35 mph or less. So get in, buckle up, and take it to the streets.

lsv-1

3-Point Seatbelt

Added safety for all driving situations.

Street-Legal Tires

Ideal for grounds, campus, and public street transportation on roads 35 mph or less.

Digital Speedometer and Odometer

Offers enhanced convenience in all driving conditions

Rotomolded Cargo Bed with Manual Tilt

5.9 cubic feet, transports loads up to 300 pounds.

Optional Hard Cab Kit

Give your staff greater protection from falling objects and bad weather.

Automotive Safety Glass Windshield

Shields the driver from the elements.


 Download or Print Specsc
Vehicle Dimensions
Overall Length109 in (277 cm)
Overall Width48.5 in (123 cm)
Overall Height w/ OPS Roof71.2 in (181 cm)
Wheel Base65.9 in (167 cm)
Front Wheel Track36.7 in (93 cm)
Rear Wheel Track39.7 in (101 cm)
Ground Clearance4.5 in (11 cm)
Cargo Box Width (Inside)44.5 in (113 cm)
Cargo Box Length (Inside)30.5 in (77 cm)
Cargo Box Depth (Inside)7.5 in (19 cm)
Cargo Box MaterialRoto-Molded Polyethylene
Power
Powertrain48-Volt AC Induction Motor
Horsepower (kW)4.4 hp (3.3 kW)
Electrical System48-Volt
Batteries (Qty, Type)Six, 8 Volt Deep Cycle, US Battery
Battery ChargerOn-board 48-Volt PowerWise™ High Frequency
Key or Pedal StartPedal Start
Drive TrainMotor Shaft Direct Drive
Speed Controller235 Amp AC Controller
TransaxleHelical Gears
Direction SelectionDash Mounted Foward-Neutral-Reverse
Speed SelectionDash Mounted High-Low Switch
Rear Axle Ration14.76:1 (F)
DC-DC Converter30 Amp – Integrated into On-board Charger(CVT)
Performance
Seating Capacity and Style2 Persons – Bucket Seats
Dry Weight893 lbs (405 kg)
Curb Weight1381 lbs (628 kg)
Bed Load Capacity300 lbs (136.1 kg)
Vehicle Load Capacity800 lbs (363 kg)
Outside Clearance Circle19.7 ft (6.0 m)
Gross Axle Weight (Front)575 lb (261 kg)
Gross Axle Weight (Rear)2000 lb 907 kg)
Speed (Level Ground)25 mph +/- 0.5 mph (40 kph +/-0.8 kph)
Steering and Suspension
SteeringDouble Ended Rack & Pinion – 3.69 turns to lock
Front SuspensionIndependent A-Arm with Coil Over Shocks
Rear SuspensionMono-Leaf Springs with Hydraulic Shocks
Service Brake4-Wheel Hydraulic Disc with Motor Regen
Parking BrakeAuto Spring Applied Electro-magnetic
Front & Rear TiresDOT Street Legal 205-50-10 Radial
Body & Chassis
FrameWelded Steel with DuraShield Powder Coat
Front Body and FinishInjection Molded Body & Automotive Style Paint
Standard ColorPatriot Blue
