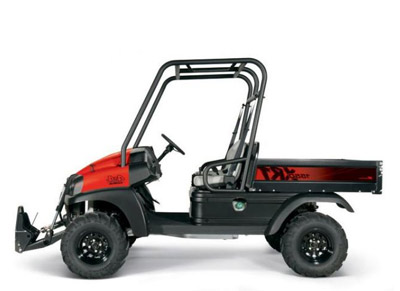

XRT1550 with IntelliTach

Combine the world-class feature set of the XRT1550 with the revolutionary IntelliTach, our exclusive quick-change tool attachment system, and you have an industry-leading utility 4×4.

Built to withstand the punishment of rough terrain, the XRT1550 is designed to thrive in even the toughest conditions. From the lightweight, aircraft-grade aluminum frame to the four-wheel, hydraulic disc brakes, the 1550 exudes confidence and quality.

And you won’t have to sacrifice comfort, either, thanks to our exclusive 13-position adjustable driver’s seat and a front suspension with coil-over shocks that will enhance your ride and reduce tire wear.

XRT-1550-Intellitach

Exclusive IntelliTach™ System

Get more from your vehicle with IntelliTach, our exclusive hydraulic-powered quick-change attachment system. A mounting plate interfaces with three attachments – bucket, pallet fork, and blade – with a quick-release handle to lock and unlock the connection.

IntelliTrak™ Automatic All-Wheel-Drive

Working on rough terrain is easy with our automatic all-wheel drive system, which senses the ground you’re on and shifts gears as needed. With other vehicles, drivers must stop to engage the locking differential. But with IntelliTrak, just select “forward or “reverse” and the system does the rest.



 Diesel
Power20 hp (15 kW) rated, 719cc,
liquid-cooled Kubota engine
RPMs3600 RPM per SAE J1995
Drive System4×4, IntelliTrak™ Full-time Automatic
Electrical System12-volt, 500 cca
SteeringAckerman geometry — Self-adjusting rack and pinion
Front SuspensionIndependent double A-arms with coil-over shocks
Rear SuspensionExclusive, heavy-duty 4-link
Brakes4-wheel hydraulic disc
ChassisRustproof, automotive-style aluminum box frame
TiresStandard Mud (MT) 25 x 11 – 12 in (635 x 279 – 305 mm)Optional All-terrain (AT) 25 x 10.5 – 12 in (635 x 267 – 305 mm)
Dash InstrumentationFuel/hour gauge, low oil and coolant high temperature warning lights
Halogen HeadlightsYes
Overall L x W x H136 x 58 x 79 in (345 x 147 x 200 cm)
Wheelbase82 in (207 cm)
Ground Clearance7 in (19 cm)
Tire TreadFront 48 in (123 cm) / Rear 49 in (124 cm)
Weight1800 lb (815 kg)
Forward SpeedUp to 25 mph (40 kph)
Load Bed Size48 x 50 x 11 in (122 x 127 x 28 cm)
Payload Capacity800 lb (363 kg)
Vehicle Capacity1200 lb (544 kg)
Seating2
FuelDiesel, 6.5 gal (24.6 L) external fuel fill
ROPS (Roll-Over Protective Structure)4-point certified system with retractable seat belts
IntelliTach™ Attachment SystemYES (Attachments are optional)
