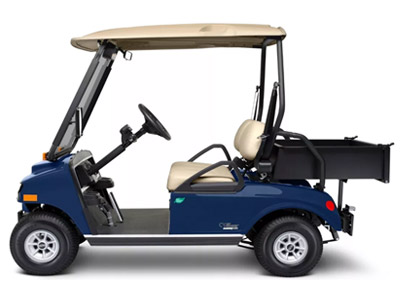

Villager 2 LSV
Improve your service and your bottom line with the Villager 2 Low-Speed Vehicle. Your fuel and maintenance expenses will be significantly lower, as will your carbon emissions – and the Villager 2 LSV may qualify for federal tax credits, too.
Club Car offers the most reliable and cost-effective LSV vehicles in the industry, all equipped to be street legal on many roads posted at 35 mph or less in most states. As the world’s largest manufacturer of four-wheel electric vehicles, Club Car knows what it takes to make a reliable vehicle that reduces your ownership costs.
Your Villager LSV comes standard with ...
- Strong, rust proof aluminum frame
- Up to 30 miles on one charge
- 3-point seat belts
- Safety-glass windshield with windshield wiper
- Advanced on-board diagnostics
- And more
| Electric | |
| Power Source | Electric |
| Drive Motor | 48-volt DC, reduced reverse speed |
| Horsepower | 5 hp (3.6 kW) continuous; 14 hp (10.3 kW) intermittent |
| Drive Unit | 10.3:1 direct-drive axle, double reduction helical gear |
| Electrical System | 48-volt DC |
| Charger | Shelf Charger |
| Controller | 350 amp DC |
| Key or Pedal Start | Pedal |
| Steering | Self-adjusting rack and pinion |
| Front Suspension | Independent leaf spring with dual hydraulic shocks |
| Rear Suspension | Leaf springs with dual hydraulic shocks |
| Brakes | 4-wheel drum |
| Park Brake | Foot-operated |
| Frame Chassis | Aluminum I-beam |
| Front Body | Impact-resistant ABS |
| Rear Body | ArmorFlex® with UV protective coating |
| Light Package | Standard package meets FMVSS 500 requirements |
| Tires | DOT rated, Std. Model 18x8.5-8; LX 205-50 R11 |
| Instrumentation | Battery warning light |
| Curb Weight (w/ Batteries) | 1069 lb. (486 kg) |
| Vehicle Rated Capacity | 550 lb. (250 kg) |
| Bed Load Capacity | 150 lbs (68 kg) |
| Combination Rated Capacity |
1619 lb. (735 kg) |
| Seating Capacity | 2 |
| Overall Length | 91.4 in (232.4 cm) with Golf Bag Rack; 101 in (265.5 cm) With Cargo Box |
| Overall Width | 47.3 in (120.1 cm) w/ Golf Bag Rack; 47.3 in (120.1 cm) w/ Cargo Box |
| Overall Height | 68.5 in (174 cm) w/ Golf Bag Rack; 68.5 in (174 cm) w/ Cargo Box |
| Wheelbase | 67.3 in (170.9 cm) |
| Ground Clearance | 4.5 in (11.4 cm) |
| Dry Weight (with batteries) |
1069 lb. (486 kg) |
| Forward Speed | 21 - 23 mph (33 – 37 kph) |
| Outside Clearance Circle (Dia) |
17.5 ft (5.3m) diameter |
| Vehicle Warranty | 4-year battery; 2-year limited vehicle |
