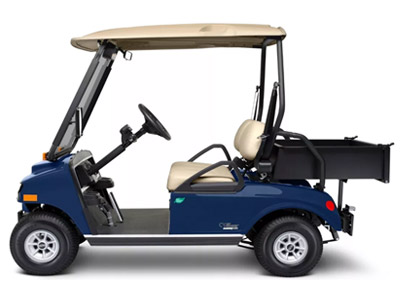

Villager 2 LSV

Improve your service and your bottom line with the Villager 2 Low-Speed Vehicle. Your fuel and maintenance expenses will be significantly lower, as will your carbon emissions – and the Villager 2 LSV may qualify for federal tax credits, too.

Club Car offers the most reliable and cost-effective LSV vehicles in the industry, all equipped to be street legal on many roads posted at 35 mph or less in most states. As the world’s largest manufacturer of four-wheel electric vehicles, Club Car knows what it takes to make a reliable vehicle that reduces your ownership costs.

villager

Your Villager LSV comes standard with …

  • Strong, rust proof aluminum frame
  • Up to 30 miles on one charge
  • 3-point seat belts
  • Safety-glass windshield with windshield wiper
  • Advanced on-board diagnostics
  • And more
 Electric
Power SourceElectric
Drive Motor48-volt DC, reduced reverse speed
Horsepower5 hp (3.6 kW) continuous;
14 hp (10.3 kW) intermittent
Drive Unit10.3:1 direct-drive axle, double reduction helical gear
Electrical System48-volt DC
ChargerShelf Charger
Controller350 amp DC
Key or Pedal StartPedal
SteeringSelf-adjusting rack and pinion
Front SuspensionIndependent leaf spring
with dual hydraulic shocks
Rear SuspensionLeaf springs with
dual hydraulic shocks
Brakes4-wheel drum
Park BrakeFoot-operated
Frame ChassisAluminum I-beam
Front BodyImpact-resistant ABS
Rear BodyArmorFlex® with
UV protective coating
Light PackageStandard package meets
FMVSS 500 requirements
TiresDOT rated, Std. Model 18×8.5-8;
LX 205-50 R11
InstrumentationBattery warning light
Curb Weight (w/ Batteries)1069 lb. (486 kg)
Vehicle Rated Capacity550 lb. (250 kg)
Bed Load Capacity150 lbs (68 kg)
Combination
Rated Capacity
1619 lb. (735 kg)
Seating Capacity2
Overall Length91.4 in (232.4 cm) with Golf Bag Rack;
101 in (265.5 cm) With Cargo Box
Overall Width47.3 in (120.1 cm) w/ Golf Bag Rack;
47.3 in (120.1 cm) w/ Cargo Box
Overall Height68.5 in (174 cm) w/ Golf Bag Rack;
68.5 in (174 cm) w/ Cargo Box
Wheelbase67.3 in (170.9 cm)
Ground Clearance4.5 in (11.4 cm)
Dry Weight
(with batteries)
1069 lb. (486 kg)
Forward Speed21 – 23 mph (33 – 37 kph)
Outside Clearance
Circle (Dia)
17.5 ft (5.3m) diameter
Vehicle Warranty4-year battery;
2-year limited vehicle
