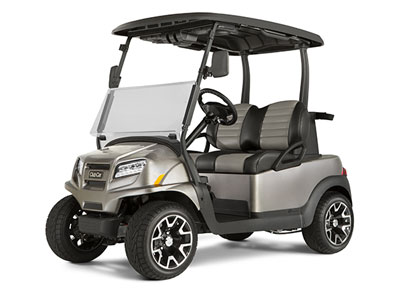

Onward 2 Passenger
Perfect for anyone who drives regularly, the Onward™ 2 Passenger PTV elevates the idea of a golf car to another level entirely. Customize it to fit your personality, style, and desired comfort that make the most of every time you drive.
| Gasoline | Electric | |
|---|---|---|
| Engine | 404 cc Subaru, 4-cycle, Overhead Cam with Electronic Fuel Injection | N/A |
| Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 | 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) |
| Batteries | One 12-volt | (6) 8-volt |
| Charger | N/A | E.R.I.C. Automatic, 48-volt; UL and CSA listed |
| Speed Range | 19 mph (30 kph) | 19 mph (30 kph) |
| Steering | SportDrive™ — Self-compensating double reduction helical rack & pinion | SportDrive™ — Self-compensating double reduction helical rack & pinion |
| Front Suspension | Independent A-arms with Hydraulic Shocks | Independent A-arms with Hydraulic Shocks |
| Rear Suspension | Tuned Monoleaf Rear Springs | Tuned Monoleaf Rear Springs |
| Brakes | Self-adjusting, rear wheel mechanical drum | Self-adjusting, rear wheel mechanical drum |
| Park Brake | Foot actuated, 3-position | Foot actuated, 3-position |
| Body and Finish | Front, Painted TPO; Rear, Painted Surlyn | Front, Painted TPO; Rear, Painted Surlyn |
| Tires | 205 / 55 - 10 Tubeless | 205 / 55 - 10 Tubeless |
| LxWxH | 92 x 48 3/4 x 71 inches | 92 x 48 3/4 x 71 inches |
| Wheelbase | 65 1/2 inches/Metric | 65 1/2 inches/Metric |
| Ground Clearance | 4 1/2 inches/Metric | 4 1/2 inches/Metric |
| Tread | Front/Rear: 36/40 inches | Front/Rear: 36/40 inches |
| Total Vehicle Weight | 975 lb | 675 lb |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | AlumiCore™ — Ladder-style aluminum box beam |
| Fuel Tank Capacity | 6.0 gal (22.7 L) | N/A |
